GamepadBlock Updater: Updating the firmware of the GamepadBlock

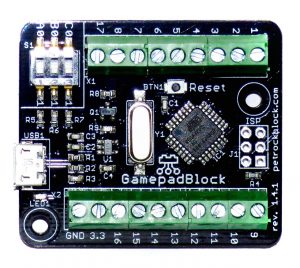

The GamepadBlock is an Arcade and Original Game Controller USB Interface for your computer. It lets you connect your favourite arcade and original game controllers. The firmware of the GamepadBlock can be updated via USB with the tool “GamepadBlock Updater”. This tutorial describes in detail how to do a firmware update with it.

Title text

Please note that there is a newer update tool for the GamepadBlock. It is a command line tool and should works more reliable than the first update tool on multiple platforms.

You can find the new update tool on the GamepadBlock Downloads page.

GamepadBlock Updater – The Firmware Update Tool

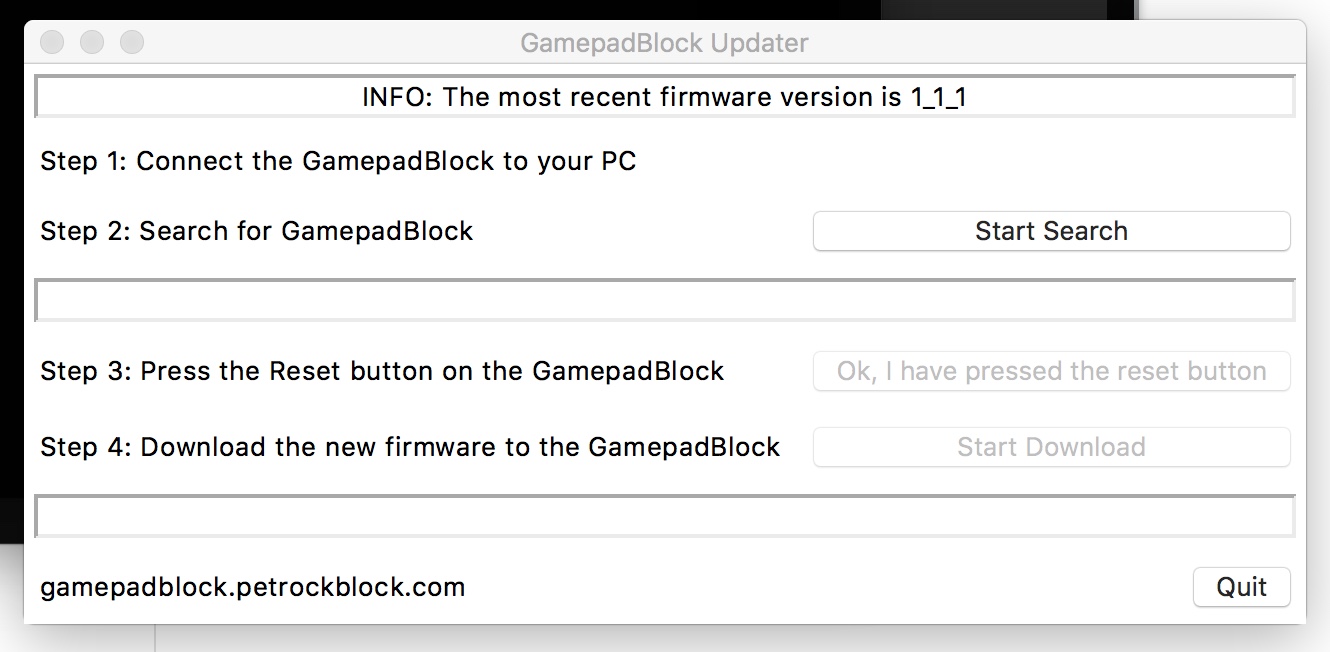

As mentioned above the firmware of the GamepadBlock can be updates via USB. This means that you do not need any additional tools or cables. Furthermore, a firmware update can be done without disconnecting the wires to the controllers. To make the update as easy as possible we provide an update tool that we creatively named “GamepadBlock Updater”:

The sources of the tool can be found at Github. Technically, it is a self-executable Python-based TkInter application.

Download

The tool is available for various platforms and is about 10 MB large. You find the download links for the various platforms below:

[one_half] [/one_half][one_half_last] [/one_half_last]

After the download you just need to unpack the archive. This gives you a single executable that you can just start to get the GamepadBlock Updater running. Right after the start, the tool connects to Github and looks for the most recent firmware for the GamepadBlock. Depending on your internet connection this can take a few seconds, so do not worry, if the GUI is not immediately showing up. When the GUI appears everything is ready for the firmware update.

How To: Updating the Firmware

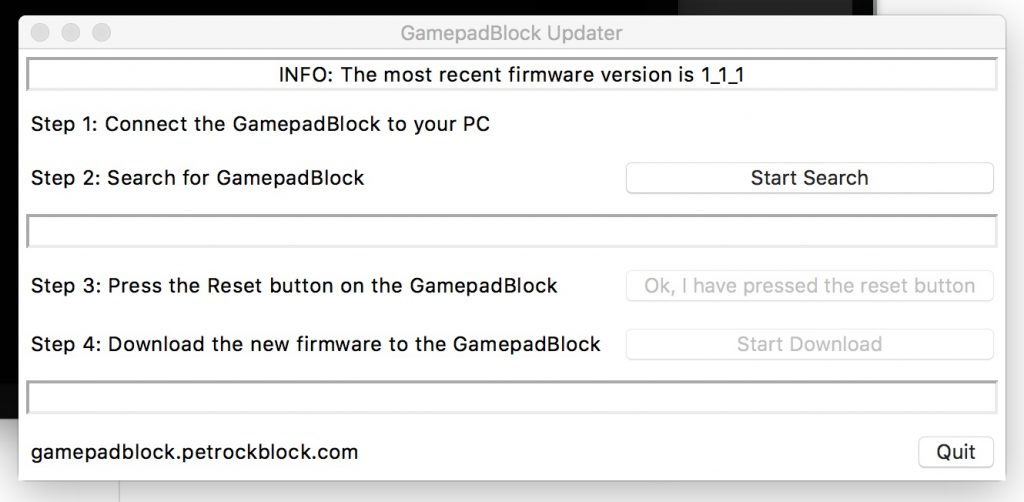

Now that you have downloaded, unpacked, and started the GamepadBlock Updater, what to do next? Follow the instructions on the GUI! Usually, the firmware update is a four steps procedure:

• You start with step 1 at the top of the GUI: Connect the GamepadBlock to the machine where the update tool is running (if that is not already the case).
• Then, in step 2, click the “Start Search” button to let the update tool connect with the GamepadBlock. When the update tool finds a GamepadBlock it reads out the currently installed firmware and shows it in the GUI.
• In step 3 you are asked to press the “Reset” button on the GamepadBlock. Do that and confirm  that you actually have pressed “Reset” by pressing the button “Ok, I have pressed the reset button”.




• In the finishing step 4, you can start to download the new firmware with the “Start Download” button. You get an information message at the bottom of the GUI about the success of the download process.

That is all!

Conclusion

The GameapadBlock Updater lets you download new firmwares to the GamepadBlock. To do so, it automatically downloads the most recent firmware. We hope that the GamepadBlock Updater is easy to use. However, if you find any bugs or if you have any suggestion for further enhancing the tool, feel free to contact us!
